Select a Diagnosis Code (ICD10) for a Report

Use the following steps to select ICD10 diagnoses for the report you are configuring.

1. To select a diagnosis, click the adjacent button.


2. In the Diagnosis Search dialog, locate the applicable diagnoses you want to include in the report criteria.

   To perform a search, be sure that the correct ICD10 Code Set is selected. The ICD10 Code Set field allows you to select the Oct 1, 2014 – Sept 30, 2016 code set, the Oct 1, 2016 – Sept 30, 2017 code set, the Oct 1, 2017 – Sept 30, 2018 code set, or All ICD10 Codes. This allows you to easily search for the applicable ICD10 codes that are active, as outlined by the CDC, for the applicable date ranges. When accessing the Diagnosis via the Reports dialog, the system will default to the code set based on the current day’s date.

   Next, select the applicable Search Column and Search Type, and then begin typing the ICD10 diagnosis you want to add in the Description field. The system will return conditions that match that description for the Search Column and Search Type selected.

   Once the applicable codes has been located, highlight that code in the left column, and the applicable code will become highlighted in the diagnostic tree in the middle column, and the right column will display detailed information regarding the selected diagnosis. To add that code, click the Add to Selected Codes button. The code will then appear in the Selected Codes area under the ICD10 column.

   You can then add additional ICD10 codes by repeating this step.

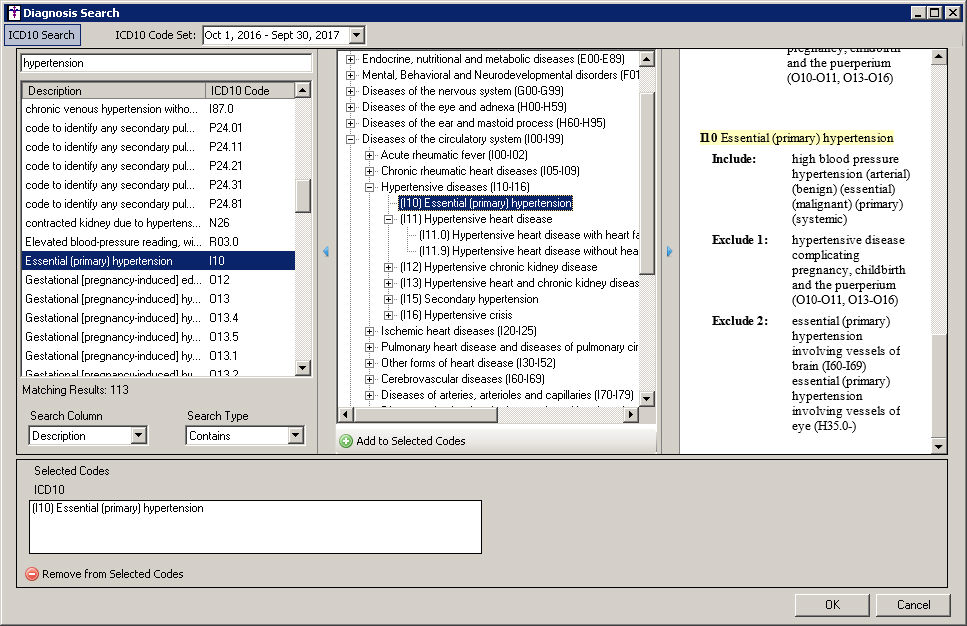

   NOTE: When adding ICD10 diagnoses codes via the diagnostic tree (middle column), if you highlight a Diagnosis Category that contains billable diagnostic codes within that category, and click the Add to Selected Codes button, all of the codes within that category will be added. For example, in the figure below, if you select (I11) Hypertensive heart disease, and then click the Add to Selected Codes button, the I11.0 and I11.9 codes will be added.

   NOTE: You also have the ability to search for specific codes via the diagnosis tree in the middle column. Likewise, when performing an ICD10 Search, you are able to hide the left and right columns as needed by clicking the and buttons.


3. Once the diagnosis codes have been selected as needed, and appear in the Selected Codes area, you have the ability to remove any of these codes from the Selected Codes by highlighting the applicable diagnosis code(s), and then clicking the Remove from Selected Codes button.


4. When the applicable ICD10 diagnosis codes appear in the Selected Codes area, as needed, click the OK button.
