Enter a Condition for a Numeric Counter

This button associates a numeric field with a result that can be tracked by the flow sheet. Use the following steps to attach a number to a condition.

1. Click the Condition button in the Numeric Fields Properties dialog and the Results Search dialog opens.

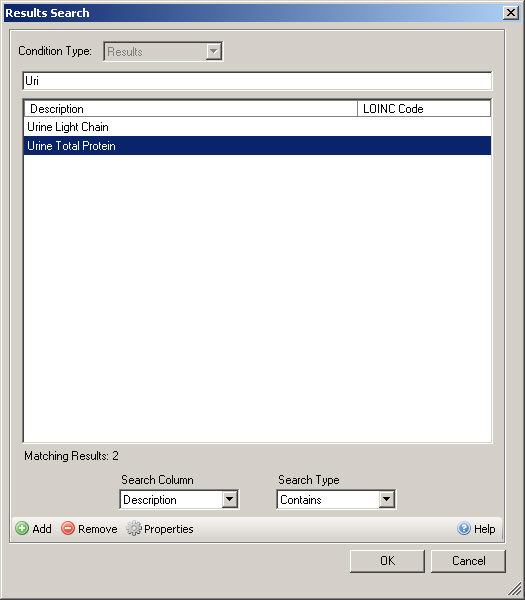

2. In the Result Search dialog, find and highlight the applicable result you wan to associate with this numeric counter, and then click the OK button. (You can also double-click the applicable diagnosis to access the Conditions Properties dialog.)

   NOTE: To search for a condition, select the applicable Search Column and Search Type, and then type into the Description field. The system will return conditions that match that description for the Search Column and Search Type selected.

   If there is a procedure or result that is not available you can Add or Modify a Condition.
